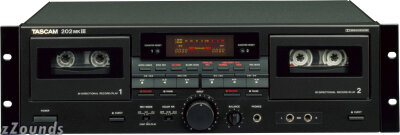

This dual cassette deck is ideally suited for both dubbing and continuous looping playback applications. Two twin-head cassette decks in a durable rack-mount housing can be used separately or in tandem during recording and playback. Dual recording speeds, computerized program searching, and other functions make editing tapes quick and easy.
Features
Technical Info
Track System: 4-track, 2-channel stereo
Heads:
Deck 1: 1 Erase and 1, Record/Playback
Deck 2: 1 Erase and 1, Record/Playback
Tape Speed: 4.76 cm/sec; 9.5 cm/sec (Hi-speed dubbing)
Wow Flutter: 0.08%
Frequency Response:
25 - 19,000 Hz, Metal tape
25 - 18,000 Hz, Cr02 tape
25 - 17,000 Hz, Normal tape
S/N Ratio:
59 dB (NR off, 3% THD Level, Weighted)
69 dB (Dolby B NR on, over 5 KHz)
79 dB (Dolby C NR on, over 1 KHz)
Fast Winding Time: Approximately 110 sec for C-60
Inputs:
Line: 97 mV, 50kW
MIC: 0.38 mV, 200W
Outputs: 0.52V for load impedance of 50kW or more
Headphones: 1mW, 8W
Power Consumption: 15W
Dimensions (W x H x D): 435 x 144 x 284mm
Weight: 4.8 kg
Standard Accessories: Input-Output connection cords
Note: Specifications determined using metal tape except as noted.
