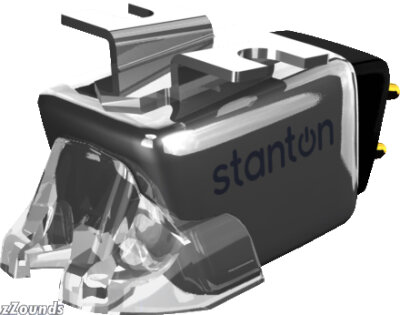

Stanton 520.V3 Spherical DJ Cartridge

All instrument parts cannot be returned once opened due to the possibility they have been used. This includes all guitar, amplifier, and turntable parts. details

About This Product!

Description

Designed with the most demanding cueing in mind, the 520.V3 offers the tightest suspension in the 500 family of products. The results: this cartridge can take the most demanding loads and deliver on point tracking during backspinning and scratching.

Features:
Best cartridge in the 500 series for scratching

Tight suspension performs at any tracking weight

New industrial design

Perfect for Hip-hop / Scratch DJs

The new industrial design is not only visually striking, but also serves the higher purpose of improving tracking for better groove holding throughout the entire line. The same Stanton sound quality and low cue burn characteristics have been preserved in order to bring you the best needles ever made!

Technical Info

Frequency Response: 20 to 17 kHz

Output @ 1kHz: 6.0mV

Channel Separation @ 1 kHz: 27dB

Channel Balance @ 1 kHz: within 2 dB

Tracking Force: 2 to 5 grams

Stylus Tip: Spherical .7 mil Special High Polish

DC Resistance: 535 ohms

Inductance: 400 mH

Cartridge Weight: 5.5 grams

Tracking Ability: 80µ @ 3 grams

Recommended Load: 47k ohms and 275 pF

Replacement Stylus: N 520
