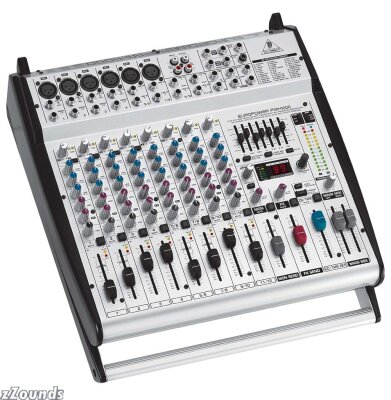

Behringer PMH1000 12-Channel Powered Mixer with FX (400 Watts)
Though the PMH1000 is our most compact console-style powered mixer, it also boasts a comprehensive layout. It features 12 channels (4 mono + 4 stereo) plus stereo tape returns?and two of the stereo channels have additional mic inputs, giving you the capacity to handle small bands or events with several microphones plus various playback devices. Its 400 Watt CoolAudio amplifier delivers the power and flexibility for a wide variety of house and monitor speaker configurations.
With our revolutionary CoolAudio amplifier technology you get enormous power, incredible sonic performance and super-light weight delivered in an ultra-compact mixer that is nearly half the weight of conventional powered mixers.
Adding to the list of 'big-mixer' features are: our awesome XPQ 3D surround sound effect, the integrated Voice Canceller which removes vocals for karaoke applications, a stereo 7-band graphic EQ with FBQ Feedback Detection, dual 12-segment LED output level meters, stereo power amp inserts and Phones/Ctrl R output with dedicated level control for headphones or powered monitors.
The PMH1000 features 6 balanced low-impedance mic inputs (4 are state-of-the-art IMP 'Invisible' Mic Preamps) with low-cut filter and additional channel inserts. All channels feature high-quality 60-mm logarithmic faders for exact level control, input level trim controls, monitor and FX sends, signal and peak LED indicators and channel mute buttons. The dedicated CD/Tape input lets you connect a line-level stereo source while the standby switch instantly mutes all of the mic input channels, so you can play music during your breaks without having to change the fader positions and lose your mix. The super-rugged carrying handle makes it easy to transport while professional Speakon (r) connectors ensure outstanding performance and reliable connection.
Technical Info
Max. Output Power:
2 x 300 W @ 4 ohms
1 x 600 W @ 8 ohms
Speaker Outputs: Neutrik Speakon comparable
Mono Mic/Line Channels: 4 (XLR + 1/4 in. TRS)
Stereo Line Channels: 4 (1/4 in. TRS + extra XLR mic inputs on ch. 5/6,7/8)
Channel Inserts: On mono channels
Channel EQ: 3-band
Graphic EQ/FBQ Feedback Detection: 7-band EQ + FBQ
Phantom Power (+48 V): Yes
Aux Sends: 1 pre/1 post fader
24-Bit Digital FX Processor: 1
XPQ Surround Effect: Yes
Voice Canceler: Yes
Standby Switch: Yes
Speaker Processing: No
Power Amp Modes: Main L + Main R, Monitor + Main, Main bridge mode
Power Amp Inserts: 2
Main Mix Line Outputs: 1/4 in. TRS L/R
Mono Line Output: No
Monitor Line Outputs: 1 x 1/4 in. TRS
2-Track I/O (RCA conn.): Yes
Phones/Ctrl.Room Output: Yes
Dimensions H x W x D (approx.): 4 7/8 in. x 15 3/8 in. x 16 3/4 in. (122 x 390 x 425 mm)
Weight (approx.): 7.6 kg (16.7 lbs.)
Special Features:
Extra XLR mic inputs on stereo channels 5/6,7/8
Hi-Z line inputs on channels 1-6
