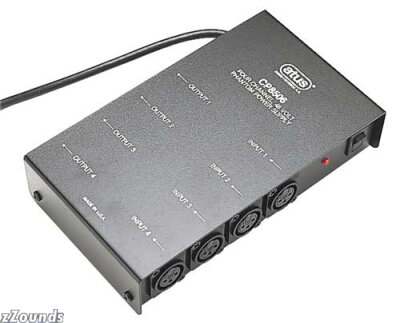

Audio Technica CP8506 48VDC 4-Channel Phantom Power Supply

30-Day 100% Satisfaction Guarantee Applies On This Item - Buy it, and if it isn't just right for you, return it!

About This Product!

Description

Docs

These line-powered devices allow the use of remote-powered microphones with systems that do not supply phantom power. Each unit features a highly-regulated power supply which provides a constant voltage source, even with a heavily-loaded input. The regulator IC is internally protected to prevent overheating or damage even if shorted. The rugged steel case is finished in enamel and provides shielding from electrostatic interference.

A Word about Audio-Technica
Audio-Technica has been dedicated to advancing the art and technology of electro-acoustic design and manufacturing since 1962. From a beginning in state-of-the-art phono cartridges, A-T has expanded over the years into high-performance headphones, microphones, mixers, and electronic products for home and professional use. In each new area the goal has been to create innovative, problem-solving products. The results of these engineering and production efforts can be seen in the effective use of A-T products in a broad spectrum of applications.

Technical Info

Number of Channels: 4

Regulated Output Voltage: 48V 12V DC

Short Circuit Output Current: 14 mA per channel

Residual Output Noise: -71 dBV

Frequency Response: 10-25,000 Hz

AC Input:115-120V AC (or 220-240V AC*) 50-60 Hz, 6 W max.

Line Cord: 6 ft. long, 18-gauge, 3-conductor SVT Plastic jacket, grounded plug

Dimensions (W x D x H): 7.75 x 4.50 x 1.75 in.

*The CP8506 includes a dual-winding power transformer. Internal re-wiring, plus changing of the line cord, permits operation on 220-240V mains. Contact the A.T.U.S. Service Department for conversion details.
