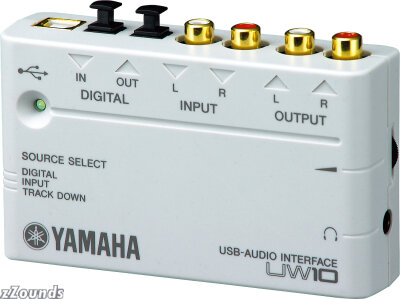

Yamaha UW10 USB Digital Recording Interface

Stereo S/PDIF optical I/O. Two RCA analog inputs and outputs. Headphone jack.

This product is no longer available at zZounds.

Shop our website for related products:

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

Yamaha UW10 USB Digital Recording Interface reviews

Rate and Review This Product:

46 People rated this product : * * * * * * * * * * 8 out of 10



2 People wrote reviews

Read all Yamaha UW10 USB Digital Recording Interface reviews...
* * * * * * * * * * 10 out of 10

"A world of its kind at 16 bit resolution interface."

Feature:
Could have been more inputs/outputs.

Quality:
Light but well built.

Value:
Should be priced below 100USD. Bit expensive for 16bit sound card.

Desirability:
I have it.

Sound:
U get warm sound for this little semi-pro stuff. Why Not.. This thing rocks.

Ease of Use:
Plug and record. No hassle.

Support:
Good warranty for 1 year.

Overall:
This thing could be priced lower cos today resolution of most cards is above 16bits. A bit outclass by its specs. And other USB cards could have been more value priced given this price. Still, its sound quality is respectably good with good AD/DA.

Submitted: 2/27/2008

Style of Music: pop

Did you find this review helpful?

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?


Thanks for your opinion!
* * * * * * * * * * 7 out of 10

"Noisy box"

Feature:
I like the simple features, although I've yet to use the digital ports.

Quality:
Construction is very weak, and almost too light. But on the good side, it's light to carry around.

Value:
I got what I paid for.

Sound:
Noisy +10dB...I got what I paid for. Pay the extra money and get the M audio pci if you want to record more professionally. I tried it on several computers and different settings (I do pc repairs for a living). It still does the job of recording though.

Support:
I haven't tried contacting them yet.

Overall:
It's okay for entry level, home.

Submitted: 6/1/2005

Style of Music: Jazz

Did you find this review helpful?

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?


Thanks for your opinion!

Read all Yamaha UW10 USB Digital Recording Interface reviews...

30-Day 100% Satisfaction Guarantee Applies On This Item - Buy it, and if it isn't just right for you, return it!

About This Product!
Description
Docs
The UW10 is a high quality, compact USB audio interface featuring stereo S/PDIF optical I/O, two RCA analog inputs and outputs and a headphone jack. The UW10 is Windows 98, ME, XP compatible and uses ASIO drivers making it perfect for home and mobile recording applications.

The incorporated headphone amplifier provides quick and mobile monitoring. Includes Yamaha's unique trackdown mode and the TWEplus wave editor for audio editing and MP3 conversion.

Features
USB interface

4 Simultaneous inputs and outputs

Optical S/PDIF inputs and outputs

Headphone output

ASIO Driver support

Trackdown mode

Windows 98, ME and XP compatible

Includes TWEplus wave editor

Technical Info

Specifications

Audio Capability:
One stereo-line recording
One stereo-line playback

Sampling Frequencies:
Input:32 kHz, 44.1 kHz, 48 kHz
Output:32 kHz, 44.1 kHz, 48 kHz

Jacks and Connectors:
Digital in jack (optical)
Digital out jack (optical)
Line in jacks (RCA pin, L/R)
Line out jacks (RCA pin, L/R)
USB connector
Headphone jack (stereo mini)

Power Supply: USB bus power supply

Dimensions (approx.) [W x D x H]: 4.37 x 2.6 x 1.22 in. (111 x 65 x 31mm)

Weight: 2.09 lbs. (95g)

Option: Optical digital cable (with optical plugs)

System Requirements
Computer: IBM PC/AT or compatible computer that features a USB connector

CPU: Intel® Pentium® or Celeron® processor with 500MHz or faster
(Windows XP: Intel® Pentium® or Celeron® processor, 750MHz or faster)

Memory: 64MB or more (128MB or more recommended)

Available hard disk space: 10MB or more (excluding the space required for Acrobat Reader and MidRadio Player)

Operating System: Windows 98/98SE/2000/Me/XP

Note:
Some operating systems may require a superior environment than that specified above.
