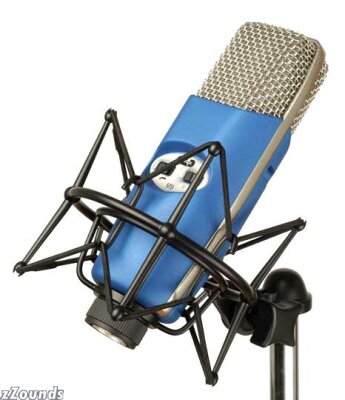

CAD M9 Tube Microphone with Case and Shock Mount

Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones. details

About This Product!

Description

Docs

News

The M9 is a cardioid single tube externally biased condenser microphone that features servo-valve technology. It's a natural bridge between the valve technology developed for CAD's VX2 microphone and the servo op-amp technology developed for their M-Series mics. The M9's head amp is a 12AX7 tube in a circuit optimized for super wide dynamic range and low noise. The output stage (balanced high speed dual op-amp) allows for long cables without affecting microphone performance.

Included Accessories

30 ft. professional quality 7 conductor cable with gold plated XLR male and female connectors

MV200 Analog Power Supply

Line Cord

Rugged carrying case

Suspension Shock Mount

Technical Info

Type: Side address, true condenser

Capsule: 1.1 in. inside diameter, gold sputtered

Frequency Response:
- Capsule: 10Hz - 20 kHz.
- Head Amplifier: 4Hz - 200KHz

Polar Pattern: Cardioid

Impedance: Low (200 ohms nominal)

Dynamic Range:
- 118.5 dB (Noise floor to max SPL @ less than 0.2% THD)
- 120 dB (Noise floor to max SPL @ less than 5.0% THD)

Equivalent Noise Level: 15 dB Equivalent SPL, A-weighted

Maximum Output Level: +8 dBV (@ 140 dB SPL, less than 5.0% THD)

Maximum SPL:
- 154.5 dB SPL (0dB pad)
- 156 dB SPL (-16dB pad)

Switches:
- Hi-Pass: (3dB @ 100Hz)
- Pad: 0dB & -16dB (Non-Capacitive)

Capsule Capacitance: 68 pF

Powering:
- Included MV200 analog power supply
- Connector: 7 pin XLR, on microphone and power supply
3 pin XLR, audio out from power supply

Cable: Professional quality 7 conductor, 30 ft. long, gold plated connectors

Finish: Blue housing, satin nickel plated screen assembly with black accents

• Owner's Manual

catalog

• 12/09
  Price cut,
   New, saves you $40.00, now $259.95.
