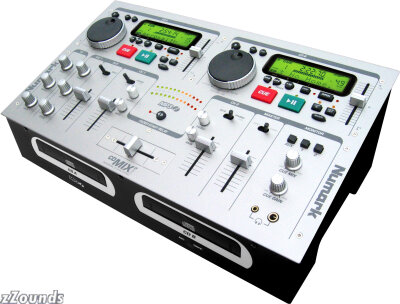

Designed expressly for mobile DJs and club owners in search of a compact, highly portable system that sets up and packs away on a moment's notice, the CDMIX3 plays both standard CD audio and MP3 CDs, provides buffered Anti-Shock in. memory protection, delivers seamless looping, and pitch control with a pitch bend wheel among its wealth of features.
Features:
Support for standard audio CDs and MP3 CDs
Buffered Anti-Shock in. memory protection for consistent playback under trying conditions
Seamless loops for both CD audio and MP3 files
True buffered instant start
Stutter start capability with settable stutter points
? 12% pitch bend capability via its pitch bend/jog wheel
Master EQ section and individual channel EQ
Technical Info
Power Source: DC 12V, 2.5A
Dimensions: 445 x 258 x 156 (W x D x H)
Audio Characteristics: (Load=47K OHM For Master Output)
1 Input Terminal (Input Level/Impedance)
CD: -14dBV/5K OHM ?2db TCD-782 (Track 16)
Line1: -14dBV/10K OHM 2db
Line 2,3: -14dBV/47K OHM 2db
Phono: -50dBV/47K OHM 2db
Mic: -53dBV/2.2K OHM 2db
Note: 0dBV=1 Vrms.
Master is set to 0dBV output
2 Output Terainal (Output Level/Impedance)
Master Out (RCA)- 0dBV (1.0V)/600 OHM
Master Out (XLR)- 0dBV (1.0V)/470 OHM 2dBV
Phones (Load=32 OHM)- -6dBV (0.5V)/33 OHM 2dBV
Max Output (THD=5%)
Master- More Than +17dBV (7V)
Phones- (Load=32 OHM)- More Than +5dBV (1.8V)
Channel Balance- Within 3dB
Frequency Response
CD/Line: 20-20KHz +1, -1.5dB
TCD-782 (Track 3, 7)
Phono: 20-20KHz +2, 2.5dB/RIAA
Mic: 20-20KHz +1, /-3dB
Output Noise (W/ 20KHz LPF and IEC-A Weighted)
Line: Less Than -75dB
Phono: Less Than -60dB
Mic: Less Than -55dB
CD S/N Ratio: More Than 80dB
Note: CD 0dB Output,
Master is set to 0dBV Output
Total Harmonic Distortion: From Master Out
CD/Line: Less Than 0.05%
Phono/Mic: Less Than 0.13%
Note: Output=0dBV,1KHz. With 20KHz LPF
and 200Hz HPF.
