Rolls WPM61 Wireless In-Ear System

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.
open zoom image for Rolls WPM61 Wireless In-Ear System, Main
open zoom image for Rolls WPM61 Wireless In-Ear System, Main
open zoom image for Rolls WPM61 Wireless In-Ear System, Main
Rolls WPM61 Wireless In-Ear System, Main Rolls WPM61 Wireless In-Ear System, Main Rolls WPM61 Wireless In-Ear System, Main
zZounds Gear Experts Say...
1/8 in. TRS stereo input jack. Can transmit to multiple receivers. Ships with the EB69 earbuds.

Rolls WPM61 Wireless In-Ear System
Compact, powerful and a great value, the Rolls WPM61 is a breakthrough in Wireless In-Ear monitor systems. The WT61 transmitter accepts any mono/stereo line level signal through its 1/8 in. TRS stereo input jack (stereo signals are mixed to mono), and transmits flawlessly to any number of WR61 belt pack receivers. The WT61 transmitter features an input volume control, RF LED, and operates on the supplied AC Adapter. The WR61 belt pack receiver features power and battery LED, limiter, volume control, 9-volt operation.

Features:
High VHF operation

Crystal-controlled for drift free transmission

Four channels available

Musician in-ear monitor

Assistive Listening

Language interpretation

Mobile audio recording

Beltpack receiver has lots of volume

EB69 earbuds

9V Battery operation (optional AC adapter available)

The new WPM61 Wireless Personal Monitor system is the simplest, most cost effective way to be wire free. Applications for the WPM61 include musicians, assistive listening, language translation, etc. Simple to set up and operate, the WPM61 consists of a transmitter and receiver operating high VHF frequency range. This reduces dropouts. Musicians can move freely about the stage and enjoy their monitor mix undisturbed.

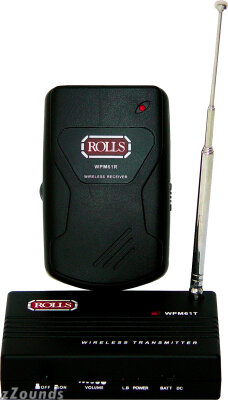

The WPM61t transmitter has a 1/8 in. (3.5mm) stereo input jack, a transmit volume control, power switch, battery/ac operation switch, power indicator LED, and telescope antenna. The signal is mixed to mono and transmitted… read more to the receiver.

The WPM61r receiver has a volume control/on-off switch, and a 9 volt battery compartment on the back.

Price/performance make the WPM61 a perfect addition for anyone wanting in-ear monitoring. read less

Transmitter
Frequency Response: 30 Hz - 15kHz

Frequency Stability: +/-10 ppm (under 25 degrees C)

Modulation: 10kHz +/- 2kHz (1kHz 50mV)

Transmitting Power: 10mW

Spurious Emission: 80dB below carrier

Distortion: <1%

Max AF Input Signal: 500mV

Power Source: 9V battery, or or external DC 12V

Current Consumption: 28mA +/-5mA

Dimension (LxWxH): 100x63x25 mm

Receiver
Sensitivity: 2.5 µV min (under squelch control)

Max. Power: 20mW min (at 16 Ohm speaker load)

Distortion: 3% max (under 10mW output)

Frequency Stability: +/-0.01% ppm (under 25 degrees C)

Hum and Noise: - 50dB min

Power Source: 9V DC (alkaline recommended)

Current Consumption: DC 20mA max

Dimension: 60x25x100 mm

For support or warranty questions, please contact the manufacturer:
Phone: 801-263-9053
Owner's Manual

Reviewers gave this product an overall rating of 4.5 out of 5 stars. (48 ratings)
Submitted October 27, 2005 by a customer from poetworld.net

"Buying more"

Overall: 4.5 out of 5 stars
(see rating details)
Verified Purchaser zZounds has verified that this reviewer purchased this specific product from us.
Sound
The reception is clear and is not over powered by the stage sound. As should be expected, the frequency response of the earbuds is not of the highest fidelity, but certainly very suitable.
Features
It had the features we needed. The ability for the user to set level is nice but probably expected. Comes with all you need to get started and extra receivers with earbuds go for about the same price as high-end earbuds alone.
Quality
Light plastic, but hey.

Musical Background:

hobbyist guitarist, church live sound engineer

Musical Style:

rock,blues, jazz
1 of 1 people (100%) people found this review helpful. Did you?
