ART Dee Jay Pre Phono Preamp with RIAA EQ

Dual RCA inputs and outputs. 1/4 Stereo Outputs. RIAA Standard EQ.

This product is no longer available at zZounds.

We recommend this product instead:

Main

ART DeeJayPreII Phono Preamp with RIAA EQ Curve

    • New $45.95
    • List: $60.00
      • SAVE: 23%
    • Only 3 left!
    • 18 people rate: 8 out of 10

The DJ PRE II is a high quality phono preamp designed for your home and studio. It acts as an interface between your turntable and your audio recording system. The analog input capacitance can be switched between 100pf and 200pf to optimize your phono cartridge response. A switchable low cut filter removes rumble while leaving the audio pristine. The front gain trim control and signal/clip LED allow you to optimize the preamps gain for a wide range of input sources. Learn More...

Shop our website for related products:

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

customer reviews

Rate and Review This Product:

23 People rated this product : * * * * * * * * * * 8 out of 10

30-Day 100% Satisfaction Guarantee Applies On This Item - Buy it, and if it isn't just right for you, return it!

About This Product!
Description
Docs

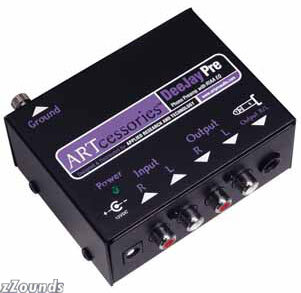

ART Dee Jay Pre Phono Preamp with RIAA EQ
Phonograph records have three basic problems:

1. It is physically impossible to press them with ridges that end up allowing low frequencies to come out at the same reproduction level as mid and high frequencies. Bass compensation is therefore needed during playback.

2. Records produce a certain amount of hiss which is covered up in post-production by boosting the gain of the high frequencies before pressing. Counter-EQing during playback compensates for this.

3. Magnetic cartridges produce a weak signal, which must be boosted to match the rest of the amplification, and this too is done during playback.

In the mid-1950s, the RIAA (Recording Industry Association of America) established compensation standards. The resulting RIAA preamp has been built into every hi-fi and stereo amplifier with phono or turntable inputs since then. A separate RIAA preamp is necessary when you are connecting a turntable to a mixer that does not have one built in. The DeeJayPRE features an RIAA-type phono preamp circuit housed in a rugged metal case with full patching facilities for connecting it to a phono turntable and mixer.

Technical Info

Specifications
Input Connectors: Dual RCA-type inputs

Output Connectors: Dual RCA-type outputs

Power Requirements: 12V DC (Adapter included)

Ground Lift: Ground terminal

Output Jack: 1/4 in Stereo output

Dimensions: 3.75x2.875x1.75 inches (95mm x 73mm x 45mm)

Weight: 1lb (454g)
