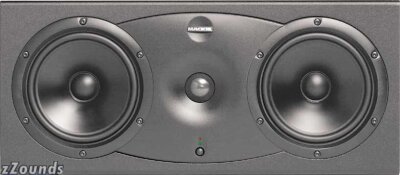

The HR626 is the first active Mackie studio monitor with a D'Appolito woofer-tweeter-woofer design. It has one 6.7-inch woofer on each end of the cabinet with the dome tweeter in the center. The monitor can be setup vertically or horizontally, depending on the application.
The 2-way bi-amplified monitor implements servo-feedback circuitry and an elliptical passive radiator to achieve low distortion and extended low-frequency response similar to the HR824. The waveguide-loaded high frequency aluminum dome tweeter provides the same crisp and evenly dispersed highs as all of Mackie's world-class reference monitors. The 5/8 in. internally braced MDF cabinet is extremely rigid and non-resonant. It shares the same professional design as the other Mackie monitors - the HR824 and the HR624.
The HR626 is the ideal monitor for those who need lots of bottom end, along with the low-level accuracy of the mid range for mixing and vocal placement. Thanks to its D'Appolito driver alignment design, the HR626 can be used in both vertical and horizontal positions. Placing the HR626 in a vertical position provides extremely accurate reference monitoring for mid-to large-sized studios. Because of its symmetrical left-right sound field, it can also be placed horizontally and used as a superior center channel in a 5.1 or 7.1 surround monitoring or home theater system.
Technical Info
Low-Frequency Driver
Number of drivers: 2
Diameter: 6.7 in. (170 mm)
Sensitivity (2.83V, 1m): 89 dB SPL
Nominal Impedance: 8 ohms
Voice Coil Diameter: 1.25 in. (32 mm)
Power Handling (Long Term/Program): 50/150 watts
Frequency Range: 38Hz to 6kHz
Frame: Die Cast Aluminum
Magnet: Ferrite
Bucking Magnet (Shield): Ferrite
High-Frequency Driver
Sensitivity (2.83V, 1m): 91 dB SPL
Nominal Impedance: 6 ohms
Power Handling (Long Term/Program): 20/50 watts
Frequency Range: 1.6kHz to 22kHz
Diaphragm/Suspension: Aluminum/Impregnated Cloth
Voice Coil Diameter: 1.0 inch (25.4 mm)
Magnet: Ferrite
Bucking Magnet: Ferrite
Wave Guide
Frequency Response: 2.5kHz to 20kHz, +/-2dB
Mouth Size: 6.13 in. diameter (156 mm)
Horizontal and Vertical Coverage: 120
