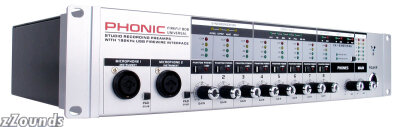

The new Phonic Firefly 808 Universal Rack-mountable preamplified unit with USB and FireWire interface is an easy-to-use, high-quality recording interface for songwriters to record guitars, keyboards, vocals and more to the computer. Featured are 8 analog (XLR and 1/4") inputs and 8 analog (1/4") outputs, as well as S/PDIF, AES/EBU, MIDI and ADAT inputs and outputs - all of which are streamed to and from the computer in real time through the FireWire or USB connection in superb 24-bit/192kHz audio. Compatible with the most popular of Digital Audio Workstation software, this powerful unit provides recording musicians and engineers alike with the kind of sophisticated yet easy-to-use recording device they require.
Universal Version
Building upon the legacy created through the popular Firefly family of digital recording interfaces, the Firefly 808 Universal offers a simpler approach to PC or Mac host-based recording systems than ever before. Incorporating both FireWire and USB connections, Mac and PC users alike will find the Firefly 808 Universal a no-fuss interface for recording up to 16 tracks in glorious 24-bit/192kHz resolution.* With the addition of a USB 2.0 connection, PC users reluctant to upgrade to fidgety FireWire expansion cards can now get multi-track audio.
Features
18 simultaneous analog and digital inputs and outputs FireWire/USB 2.0audio interface
8 microphone preamps with trim control and individual phantom power
S/PDIF, AES/EBU, MIDI, ADAT and Word Clock I/O
Compatible with Mac OSX and Windows XP / Vista
Steinberg Cubase LE 4 included
Important Note: Firewire version only has a Firewire output connection, no USB.
Technical Info
FireWire (IEEE 1394) and USB 2.0 audio interface
24-bit resolution, up to 192 kHz sampling rate
18 simultaneous inputs and outputs FireWire/USB audio interface
8 microphone preamps with trim control and individual phantom power switches
8 analog line Inputs including 2 Instrument Inputs
8 channels of optical ADAT I/O (4 ch. via 96k dual SMUX)
S/PDIF I/O, AES/EBU I/O, MIDI I/O and word clock I/O
Headphone output and Main output with volume control for monitoring purpose
Channel meters on channel 1 to 8 for input or output
Synchronization, sampling rate, digit I/O and MIDI in/out indicators
Dual FireWire ports for daisy chaining and direct connection to Mac or PC
Stand-alone Mixer functionality for field and studio use without computer
Instrument input, pad switch, balanced TRS send jacks on Inputs 1 and 2
Compatible with Mac OSX and Windows XP / Vista
Steinberg Cubase LE 4 DAW software included
