If you've spent any time at all in professional audio, you know the name Crown and what it stands for - incredible performance and sound, the ultimate in reliability under harsh conditions, and the best support in the business. These are just a few of the reasons why the world's biggest tours and most prestigious installations have Crown amps in their racks. And now, with the introduction of the new CE Series, Crown professional amplifiers come in a very affordable price range.

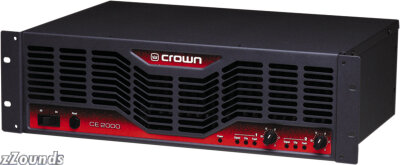

CE Series amplifiers are professional tools designed and built for professional use. Engineered and manufactured by the same teams who build the acclaimed Macro-Tech and K Series amps, the new CE 1000 and CE 2000 have the rugged heart and soul that has characterized Crown amplifiers for over 30 years. Rather than make a cheap amplifier and hang all sorts of semiprofessional features on it, they focused on providing powerful, reliable performance with many of the same controls and features you've come to expect from Crown. You'll find front panel detented level controls, useful function indicators, proportional fan-assisted cooling, short circuit protection, and more. And, to make the amplifier more flexible to the way that you work, Crown has provided a new SST (System Solution Topologies) module which allows you to customize the amplifier with true professional features such as fixed-point crossover cards.
The result is an amplifier capable of chest-thumping lows that easily handles real 2-ohm loads and runs longer under difficult conditions than any competitive amp out there. Plus, your investment in a CE amplifier is backed by Crown's unequaled Three Year, No-Fault, Full Warranty that covers everything.
Compare the new CE 1000 and CE 2000 head-to-head with the competition and hear for yourself why Crown is the only serious choice for audio professionals.
Technical Info
Power:
2 ohm stereo (per channel): 975W
4 ohm stereo (per channel): 660W
8 ohm stereo (per channel): 400W
4 ohm bridge-mono: 1950W
8 ohm bridge-mono: 1320W
Load Impedance: Safe with all types of loads. Rated for 4 and 8 ohms in Stereo mode, 4 ohms in Bridge-Mono mode
Voltage Gain to 1-kHz, 8-ohm rated output,
CE 1000:
30.5-dB gain at 1.4-volt sensitivity;
26-dB gain at 2.34-volt sensitivity.
CE 2000:
32.1-dB gain at 1.4-volt sensitivity;
26-dB gain at 2.83-volt sensitivity.
Required AC Mains: 50/60 Hz (North American units are 60 Hz only); 100, 120 and 230-240 VAC (+/-10%) units are available.
AC Line Current,
100 Volts: 11.4 A;
120 Volts: 9.5 A;
230-240 Volts: 5.0 A;
At Idle: All amps draw no more than 90 watts.
AC Line Connector: NEMA 5-15P (15 A).
Performance
Frequency Response: +/-0.2 dB from 20 Hz to 25 kHz at 1 watt.
Phase Response: +/-15 degrees from 20 Hz to 20 kHz at 1 watt.
Signal to Noise Ratio, A-Weighted: Better than 105 dB below rated 1-kHz power; 20 Hz to 20 kHz: Better than 100 dB below rated 1-kHz power.
Total Harmonic Distortion (THD): 1-kHz rated power, 0.5% or less true THD from 20 Hz to 20 kHz.
Intermodulation Distortion (IMD): (60 Hz and 7 kHz at 4:1) Less than 0.1% at rated power to 35 dB below rated power at 8 ohms.
Damping Factor: Greater than 400 from 10 Hz to 400 Hz.
Crosstalk: Better than 55 dB below rated power, 20 Hz to 20 kHz.
Common Mode Rejection (CMR): Better than 70 dB from 20 Hz to 1 kHz.
DC Output Offset (Shorted Input): +/-10 mV.
Controls
Level: A detented rotary level control for each channel located on the front panel.
Power: An on/off rocker switch located on the front panel.
Mode: Turn power off before switching. A 2-position switch located on the back panel below the input connectors which, when turned to stereo, operates the amplifier as 2 independent channels. When "Bridge-Mono" mode is selected, the amplifier bridges the 2 output channels for twice the output voltage.
Sensitivity: A 2-position switch located on the back panel next to the Mode switch. Switchable between 1.4 volts for full output into an 8-ohm load (default setting), or a fixed voltage gain of 26 dB.
Indicators
Signal: A green LED for each channel which flashes when a very low-level signal (>?40 dBm) is present at input. May be used for troubleshooting cable runs.
Clip: A red LED for each channel which turns on when distortion becomes audible in the amplifier output.
Fault: Normally off, this red indicator will blink under 5 different conditions:
When the amplifier is first powered up, until the unit is ready for operation. If the heatsinks reach a temperature above normal working limits. If the transformer thermal protection circuit is activated. If amplifier output wires develop a short-circuit. Should the amplifier output stage become non-operational. This circuit may be monitored remotely by plugging a simple switching circuit using an LED or other signaling device into the back-panel RJ-11 (Fault) jack. Under some conditions, the output of the amplifier will be muted.
Power: A green LED that turns on when the amplifier has been turned on and has power.
Input/Output
Input:
Input Connector (standard module): One Neutrik(TM) Combo connector for each channel which features a balanced
